Spring with a Set Collection



In our last tutorial, we understood how to configure a collection of objects stored within a List collection using Spring Framework. In this tutorial, we are going to explain how to configure a collection of objects stored within a Set collection using the <set> tag of Spring Framework within its configuration XML file.




Creating the Java class - Company


We are going to create a java class named Company within the decodejava package and this class contains a String property named name and a Set collection to contain Employee objects. Besides this, we are also going to define a couple of getter and setter methods within this class to set the Set collection and the String property.


package decodejava;

import java.util.Set;

public class Company
{
 public String name;
 public Set<Employee> employees;


public String getName()
{
	return name;
}

public void setName(String name)
{
	this.name = name;
}


public Set<Employee> getEmployees()
{
	return employees;
}

public void setEmployees(Set<Employee> employees)
{
	this.employees = employees;
}

}





Creating a Java Class - Employee


Next, we are going to add another Java class named Employee and it is going to contain a String property and a primitive int property.

The properties will be assigned a value by the Spring Container, when the Employee bean is created by it using the configuration xml file(to be created in the upcoming section).


package decodejava;

public class Employee
{
	public String name;
	public int telNo;


	public String getName()
	{
		return name;
	}

	public void setName(String name)
	{
		this.name = name;
	}


	public int getTelNo()
	{
		return telNo;
	}

	public void setTelNo(int telNo)
	{
		this.telNo = telNo;
	}

}





Adding the Utility class that calls the Spring API


Next, we are going to create another class named - Utility, which is a simple java class.

Utility.java
package decodejava;

import java.util.Set;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.FileSystemXmlApplicationContext;

public class Utility {

	public static void main(String[] args)
	{
		ApplicationContext context = new FileSystemXmlApplicationContext("classpath:config.beans.xml");
		Company company = context.getBean(Company.class);
		Set<Employee> listOfEmp = company.getEmployees();

		for(Employee emp : listOfEmp)
		{
			System.out.println("Name of employee : " + emp.getName());
			System.out.println("Employee telephone num : "+ emp.getTelNo());
		}

	}

}


The Utility class uses the ApplicationContext container(an interface) of Spring Framework by creating its instance using its implemented class FileSystemXmlApplicationContext, which loads the configuration xml file - config.beans.xml and does the following -






Adding a configuration file


Next, we are going to add a configuration file to our project. This configuration document is an Extensible Markup Language(XML) file, ending with .xml extension and we are going to name file as config.beans.xml.

In this file, we have configured a Company bean with a unique id and it contains a collection of Employee beans.


config.beans.xml
<?xml version="1.0" encoding="utf-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:util="springframework.org/schema/util"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/context/spring-context.xsd
       ">

<bean id="CompanyBean" class="decodejava.Company">
<property name="employees">
	<set>
			<bean class="decodejava.Employee">
			<property name="name" value="Emp1"></property>
			<property name="telNo" value="111111"></property>
			</bean>

			<bean class="decodejava.Employee">
			<property name="name" value="Emp2"></property>
			<property name="telNo" value="222222"></property>
			</bean>

			<bean class="decodejava.Employee">
			<property name="name" value="Emp3"></property>
			<property name="telNo" value="333333"></property>
			</bean>
	</set>
</property>
</bean>

</beans>



This mapping document has a parent <beans> tag as the root element and its individual child elements, each with a <bean> tag, containing all the attributes such as -




Adding JARs

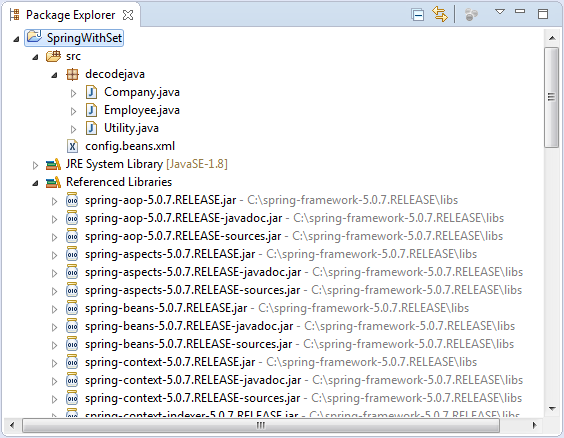

Directory Structure of Project




The picture above depicts how and where to arrange classes and interfaces comprising this Spring Project, in a specific directory structure.

Project Folder - SpringWithSet is the name of our Project and it is a top-level directory.






Execution


Finally, after executing Utility class, you will get the following output within the Console window. This output shown below, shows how the Utility class has used the ApplicationContext container of Spring Framework to load the configuration xml file - config.beans.xml, access the beans specified in it, instantiate the Company class and Employee class, by calling their respective setter methods.


Jul 21, 2018 3:13:00 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
INFO: Loading XML bean definitions from class path resource [config.beans.xml]
Name of employee : Emp1
Employee telephone num : 111111
Name of employee : Emp2
Employee telephone num : 222222
Name of employee : Emp3
Employee telephone num : 333333


This concludes configuring a Set collection with the Spring Framework. In the next article, we are going to show you how to configure a Map collection with the Spring Framework.
