In our last article, we have explained you how to perform a many-to-one mapping of objects between two Entity classes using Hibernate annotations. Today we are going to understand how to perform a many-to-one mapping of objects between two Entity classes using Hibernate's mapping resource file, instead of using its annotations.

Many-to-One relationship is all about how multiple objects of one class are associated with an object of another class.

To understand one-to-one mapping, let's take an example of two Entity classes - User_Details and Mobile_Num, where objects of both Entity classes are stored in separated database tables and multiple objects Mobile_Num are having an association with an object of User_Details class. So, each

Let's put this example to work and make it easier for you to understand.

Note :

• In the upcoming example, We are going to create a few Java classes(Entity classes) which will be mapped to separate tables in our database(Oracle Express Edition 10g). To perform this, we are not going to use Hibernate Annotations, we will instead create the mapping-resource file with extension hbm.xml.


• And yes, one more thing, we are going to create this program in an Eclipse Integrated Development Environment (IDE), so you may use any IDE of your choice.







Creating a primary Entity class



We are going to create a class that will contain all the Java code files representing our Model class(whose objects needs to be persisted) and the class that calls the Hibernate API and create an object-relational mapping(ORM) and perform object persistence.

This is a simple Java class whose objects needs to be persisted/saved, these objects are also known as Plain Old Java Objects(POJO) or Entity class. Some may even refer to such class whose objects needs to be persisted as the Model class.




• @OneToMany - This annotation is placed just above an object property of another Entity class, which tells the Hibernate that the objects of the Entity class containing this annotation maintains a one-to-many association with the object of the Entity class placed right under this annotation.


We have used two elements of @OneToOne annotation -


• cascade- This field allows you to take an action on not just the parent/primary object of one-to-one relationship but also on the associated child/secondary object as well. For example -



  cascade = {CascadeType.ALL}


  Says - if an object of parent/primary class is removed, refreshed/updated, merged or saved/persisted then its associated child/secondary class object should also be removed, refreshed/updated, merged or saved/persisted(depending on the operation).



• mappedBy - This elements allows us to define a field which is the parent of one-to-many relationship.


User_Details.java

package decodejava;

import java.util.ArrayList;
import java.util.List;


public class User_Details
{

	private int id;
	private String firstName;
	private String lastName;
	private List<Mobile_Num> mob= new ArrayList<Mobile_Num>();


	public List<Mobile_Num> getMob()
	{
		return mob;
	}


	public void setMob(List<Mobile_Num> mob)
	{
		this.mob = mob;
	}


	public int getId()
	{
		return id;
	}


	public void setId(int id)
	{
		this.id = id;
	}


	public String getFirstName()
	{
		return firstName;
	}


	public void setFirstName(String firstName)
	{
		this.firstName = firstName;
	}


	public String getLastName()
	{
		return lastName;
	}


	public void setLastName(String lastName)
	{
		this.lastName = lastName;
	}
}






Advertisement






Creating the secondary Entity class


Next, we are going to create the child Entity class whose objects will also be persisted in a separate database table. The object of this class will contain a specific piece information about each user, such as - mobile id and mobile umber. This class is also an entity class.


Mobile_Num.java

package decodejava;

public class Mobile_Num
{

private int id;
private int mobile_number;
private User_Details user;

public int getId()
{
	return id;
}

public void setId(int id)
{
	this.id = id;
}


public User_Details getUser()
{
	return user;
}

public void setUser(User_Details user)
{
	this.user = user;
}


public int getMobile_number()
{
	return mobile_number;
}
public void setMobile_number(int mobile_number)
{
	this.mobile_number = mobile_number;
}

}








Creating the class that calls the Hibernate API


This class will create some User_Details objects, which will be persisted using the Hibernate API and an object-relational mapping(ORM) in the database is performed.

The Hiber class creates a Configuration object, used to configure the Hibernate. This is the first object we use when using the Hibernate. This object is used to specify the location of a configuration file and mapping document used by Hibernate. Using Configuration object we can create a SessionFactory object, which is eventually used to create a Session object to perform the object persistence operations.



Hiber.java

package decodejava;

import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;

import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.cfg.Configuration;


public class Hiber
{

	public static void main(String... ar)
	{
	Configuration config = new Configuration();
	SessionFactory sf = config.configure().buildSessionFactory();
	Session session  = sf.openSession();


	//Creating the first User details
	User_Details user1 = new User_Details();
	user1.setFirstName("First");
	user1.setLastName("User");


	//Creating the first contact info for the user
	Mobile_Num mob1 = new Mobile_Num();
	mob1.setMobile_number(1111111);

	//Setting the user with the second mobile number
	mob1.setUser(user1);



	//Creating the second contact info for the user
	Mobile_Num mob2 = new Mobile_Num();
	mob2.setMobile_number(2222222);

	//Setting the user with the second mobile number
	mob2.setUser(user1);



	List<Mobile_Num> collection = new ArrayList<Mobile_Num>();
	collection.add(mob1);
	collection.add(mob2);

	//Setting the collection of mobiles to a user
	user1.setMob(collection);



	session.beginTransaction();
	session.save(user1); //Saving the first User_Details object
	session.getTransaction().commit();
	session.close();


	//Retrieve and displaying the user details
	session = sf.openSession();
	session.beginTransaction();
	user1 = (User_Details)session.get(User_Details.class,1);

	System.out.println("Retrieving the saved objects");
	collection = (List<Mobile_Num>) user1.getMob();
	mob1 = collection.get(0);



	//Accessing the user from the first mobile object to display mobile's association with the user.
	user1 = mob1.getUser();
	System.out.println("Information about the user of mobile1");
	System.out.println("User Id : " + user1.getId());
	System.out.println("First Name : " + user1.getFirstName());
	System.out.println("Last Name : " +user1.getLastName());
	System.out.println("Mobile id : " + mob1.getId());
	System.out.println("Mobile number : " + mob1.getMobile_number());



	//Accessing the user from the second mobile object to display mobile's association with the user.
	mob2 = collection.get(1);
	user1 = mob2.getUser();
	System.out.println("Information about the user of mobile2 ");
	System.out.println("User Id  : " + user1.getId());
	System.out.println("First Name : " + user1.getFirstName());
	System.out.println("Last Name : " +user1.getLastName());
	System.out.println("Mobile id : " + mob2.getId());
	System.out.println("Mobile number : " + mob2.getMobile_number());
	}
}








Adding JARs



• We are going to add some JARs files to the build path of our Java project. These JARs make the Hibernate work with our database using a specific JDBC Driver for our particular database.

  All these JARs are included in the folder named required(within our Hibernate installation folder). So, we need to add all the JARs in the required to our build path of our Java project.


• Finally, we are going to add one more JAR file. This is a specific JDBC JAR file(ojdbc14.jar) required by Hibernate to connect to our database(Oracle Express Edition 10g) and perform object-relational mapping and object persistence.


Note : Those who don't know how to add JARs to the build path of your Java project in Eclipse IDE, please refer to our section Adding JARs to your Hibernate project in Eclipse.







Adding the mapping-resource file



• Following the same steps using which we created and added the configuration file in our project, we are going to create and add a mapping-resource file for each Entity class within our package decodejava. This file allows Hibernate to map the Model/Entity class to a table in the database and perform the object-relational mapping. Hence, we have created two mapping resource document.


  • userdetails.hbm.xml corresponding to User_Details Entity class.
  • mobilenum.hbm.xml for Mobile_Num Entity class.

  This mapping document ends with an extension .hbm.xml.


  userdetails.hbm.xml

  <?xml version = "1.0" encoding = "utf-8"?>
  <!DOCTYPE hibernate-mapping PUBLIC
  "-//Hibernate/Hibernate Mapping DTD//EN"
  "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">


  <hibernate-mapping>

       <class name = "decodejava.User_Details1" table = "USER_DETAILS">

        <id name = "id"  column = "USER_ID" type = "int">
           <generator class="increment"/>
        </id>

        <property name = "firstName" column = "First_Name" type = "string"/>

        <property name = "lastName" column = "Last_Name" type = "string"/>

  	  <list name ="mob" cascade="all">
  	  	<key> <column name="USER_ID"> </column> </key>
  	  	<list-index column="MOB_ORDER" base="1"/>
  	  	<one-to-many class="decodejava.Mobile_Num"/>
  	  </list>


      </class>


  </hibernate-mapping>



  mobilenum.hbm.xml

  <?xml version = "1.0" encoding = "utf-8"?>
  <!DOCTYPE hibernate-mapping PUBLIC
  "-//Hibernate/Hibernate Mapping DTD//EN"
  "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">


  <hibernate-mapping>

        <class name = "decodejava.Mobile_Num" table = "MOBILE_NUM">

        <id name = "id"  column = "MOBILE_ID" type = "int">
           <generator class="sequence">
           </generator>
        </id>

        <property name = "mobile_number" column = "Mobile_Number" type = "int"/>

        </class>


  </hibernate-mapping>



  This mapping document has <hibernate-mapping> as the root element and its child element <class>, containing all the class elements.
  • The name attribute within the <class> element defines the name of the class to be mapped to a database table.
  • The table attribute within the <class> element defines the name of database table to be created for the class.




  The id element maps a property within the class to the primary key of the database table.
  • The name child attribute refers to the name of a property in the class.
  • The column child attribute refers to name of a column in the database table.
  • The type child attribute specifies the data type of the property within the class, which will be mapped to SQL data type.




  The property element maps a property within the class to a column in the database table.
  • the name child attribute refers to the name of a property in the class.
  • The column child attribute refers to the column name in the database table.




  The bag element maps a collection object of type List to a database table and without adding index like list element does.
  • the name child attribute refers to the name of a Collection property in the class.
  • the table child attribute refers to the name of the table that will to hold a Collection property in the class.
  • The cascade child attribute specifies how the actions that are performed on the parent or primary Entity class are cascaded to the child or secondary Entity class, where value all means that all the actions performed on the primary Entity class will be automatically cascaded to the secondary Entity class involved in a relationship.



  • the key child attribute described the name of a property of the class.
  • The column child attribute refers to the foreign key column .



  • The <many-to-one> element maps a many-to-one relationship between the object of two classes, i.e. how multiple objects of one class are associated with an object of another class.
  • The name child attribute refers name of the attribute associated with this many-to-one relationship.
  • The column child attribute refers name of the foreign key column in this many-to-one relationship.
  • The class child attribute refers name of the class which is part of this many-to-one relationship.








  Adding a configuration file



  • Next, we are going to add a configuration file to our project.

    This configuration document ends with an extension .cfg.xml, and it is named as hibernate.cfg.xml.


    This configuration file is an xml file and it allows us to specify the following features -
    • A database to which Hibernate connects to perform object-relational mapping and object persistence.
    • The JDBC driver class for our specific database, used by the Hibernate to connect to the database.
    • The username and password of database, using which the Hibernate connects to the database.
    • An SQL Dialect, used by the Hibernate to instruct the database.
    • A Entity/POJO class which will be mapped to a database table by Hibernate.
    • A command to echo all the SQL commands which are executed by the Hibernate on stdout.
    • The mapping resource file used by Hibernate to correctly map both the Entity classes to their separate database tables.



    hibernate.cfg.xml

  <?xml version="1.0" encoding="utf-8"?>
  <!DOCTYPE hibernate-configuration PUBLIC
      "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
      "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">



  <hibernate-configuration>

  <session-factory>


  <!-- Database connection settings -->
  <property name="connection.driver_class">oracle.jdbc.driver.OracleDriver</property>
  <property name="connection.url">jdbc:oracle:thin:@localhost:1521:XE</property>
  <property name="connection.username">system</property>
  <property name="connection.password">promila21</property>


  <!-- JDBC connection pool (use the built-in) -->
  <property name="connection.pool_size">1</property>


  <!-- SQL dialect -->
  <property name="dialect">org.hibernate.dialect.Oracle10gDialect</property>


  <!-- Disable the second-level cache  -->
  <property name="cache.provider_class">org.hibernate.cache.internal.NoCacheProvider</property>


  <!-- Echo all executed SQL to stdout -->
  <property name="show_sql">true</property>


  <!-- Drop and re-create the database schema on startup -->
  <property name="hbm2ddl.auto">create</property>


  <!-- Names the mapping entity class -->
  <mapping class ="decodejava.User_Details"/>
  <mapping class ="decodejava.Mobile_Num"/>

  </session-factory>

  </hibernate-configuration>








  Directory Structure of Hibernate Project






  The picture above depicts how and where to arrange POJO/Entity(.java) file, a secondary Entity (.java) class file and the other the class(that calls the hibernate into action) in a specific directory structure..

  Project Folder - HibernateManyToOneMapping is the name of our Project and it is a top-level directory.


  • This project folder contains the main package of our project i.e. decodejava, which contains the primary POJO/Entity class file i.e. User_Details.java, the secondary Entity class i.e. Mobile_Num.java and the class that calls the hibernate into action i.e. Hiber.java.



  • Besides this, the project folder also contains the hibernate configuration file i.e. hibernate.cfg.xml, and the mapping-resource files named userdetails.hbm.xml and mobilenum.hbm.xml .



  • The project folder also contains all the needed Hibernate JARs present in the required folder of Hibernate installation and the JDBC JAR file(ojdbc14.jar) required by Hibernate to connect to our database.







  Execution


  Finally, after executing Hiber class, two separate tables will be created in the database -
  • USER_DETAILS, representing object-relational mapping(ORM) for User_Details class.


  • MOBILE_NUM, representing object-relational mapping(ORM) for Mobile_Num class, which show one-to-many relation from USER_DETAILS to MOBILE_NUM and many-to-one relationship from MOBILE_NUM to USER_DETAILS.

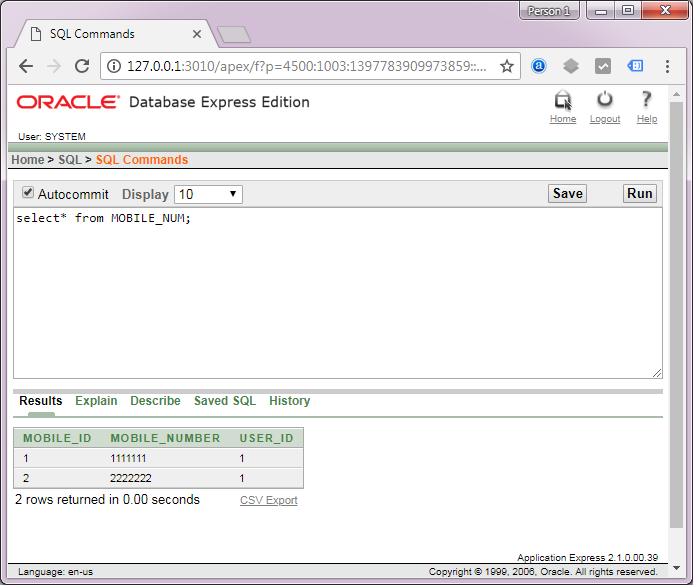

  Hence, when you execute the Hiber.java class, you will see the following output which shows one-to-many mapping .



  Hibernate: create sequence hibernate_sequence start with 1 increment by 1
  Hibernate: create sequence id_seq start with 1 increment by 1
  Hibernate: create table MOBILE_NUM (MOBILE_ID number(10,0) not null, mobile_number number(10,0) not null, user_id number(10,0), primary key (MOBILE_ID))
  Hibernate: create table USER_DETAILS (USER_ID number(10,0) not null, First_Name varchar2(255 char), Last_Name varchar2(255 char), primary key (USER_ID))
  Hibernate: alter table MOBILE_NUM add constraint FKinkg6o8fm7jwhao8slsjqnaxa foreign key (user_id) references USER_DETAILS
  Hibernate: select hibernate_sequence.nextval from dual
  Hibernate: select id_seq.nextval from dual
  Hibernate: select id_seq.nextval from dual
  Hibernate: insert into USER_DETAILS (First_Name, Last_Name, USER_ID) values (?, ?, ?)
  Hibernate: insert into MOBILE_NUM (mobile_number, user_id, MOBILE_ID) values (?, ?, ?)
  Hibernate: insert into MOBILE_NUM (mobile_number, user_id, MOBILE_ID) values (?, ?, ?)
  Hibernate: select user_detai0_.USER_ID as USER_ID1_1_0_, user_detai0_.First_Name as First_Name2_1_0_, user_detai0_.Last_Name as Last_Name3_1_0_ from USER_DETAILS user_detai0_ where user_detai0_.USER_ID=?
  Retrieving the saved objects
  Hibernate: select mob0_.user_id as user_id3_0_0_, mob0_.MOBILE_ID as MOBILE_ID1_0_0_, mob0_.MOBILE_ID as MOBILE_ID1_0_1_, mob0_.mobile_number as mobile_number2_0_1_, mob0_.user_id as user_id3_0_1_ from MOBILE_NUM mob0_ where mob0_.user_id=?
  Information about the user of mobile1
  User Id : 1
  First Name : First
  Last Name : User
  Mobile id : 1
  Mobile number : 1111111
  Information about the user of mobile2
  User Id  : 1
  First Name : First
  Last Name : User
  Mobile id : 2
  Mobile number : 2222222


  This output shows you all the SQL commands executed by the Hibernate within the database to map the Java class to a database table and perform all the activities of saving and retrieving the objects of both Entity classes involved in a one-to-one relationship.



  Moreover, if you see the following SQL query in the database -



  • select * from USER_DETAILS;



  you will get the following output displaying the objects of User_Details Entity class stored in USER_DETAILS table, as shown below.







  And on executing the second query in the database -



  • select * from MOBILE_NUM;



  you will get the following output displaying the objects of child Mobile_Num class stored in MOBILE_NUM table, as shown below., as shown below.





  This table shows you how our first user(having id =1), is associated with multiple mobiles(each having different ids) This output shows how each object in User_Details class is involved in a one-to-many relationship with objects of Mobile_Num and objects of Mobile_Num class are involved in many-to-one relationship with object of User_Details class.






  Please share this article -






  < Prev
  Next >
  < ManyToOne Mapping With Annotation
  ManyToMany Mapping With Annotation>



  Advertisement
